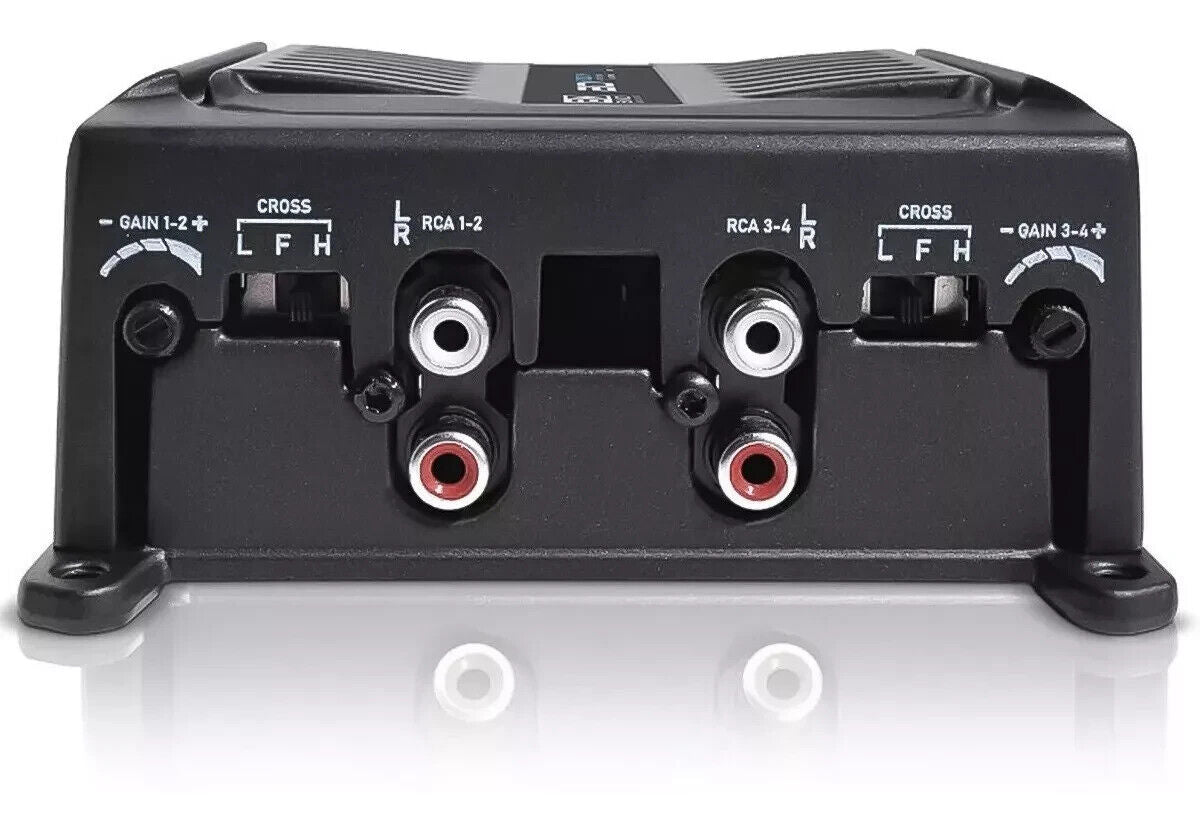

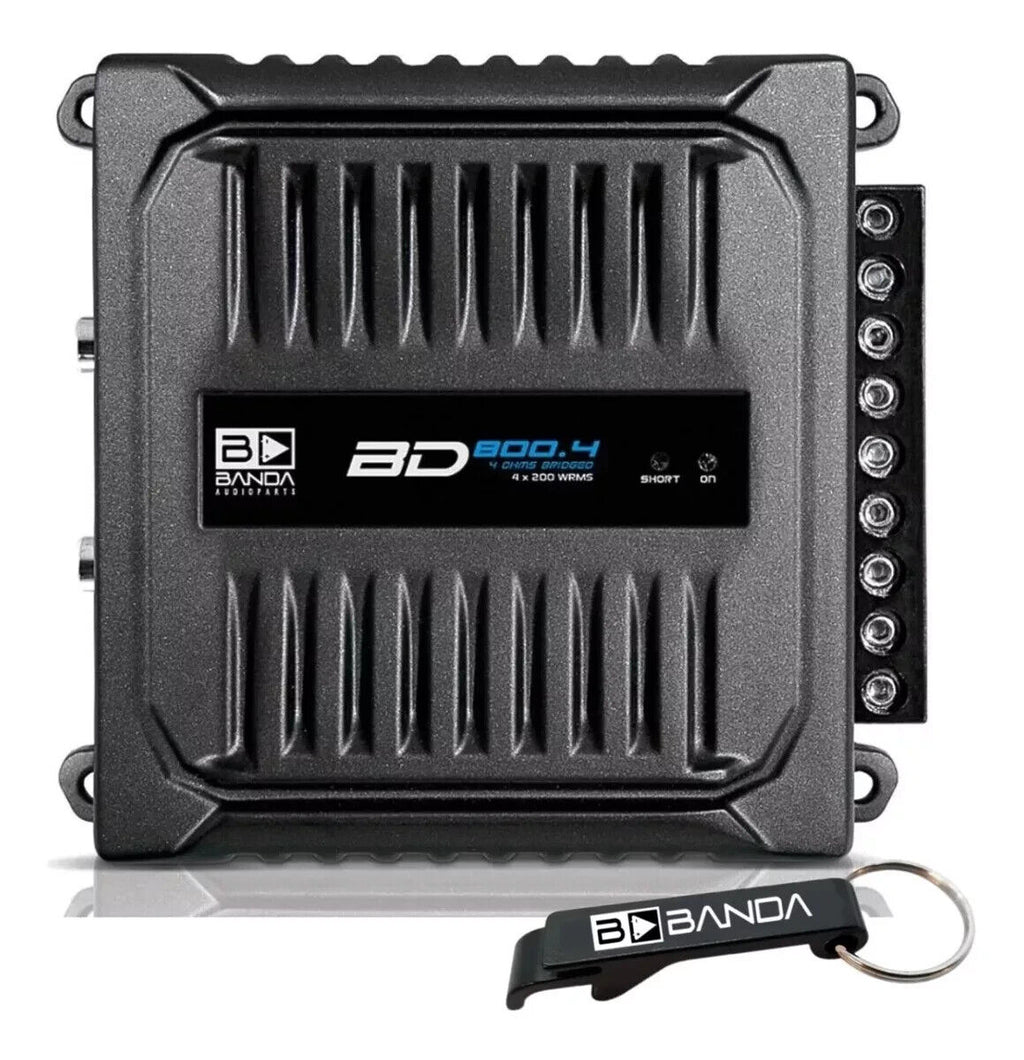

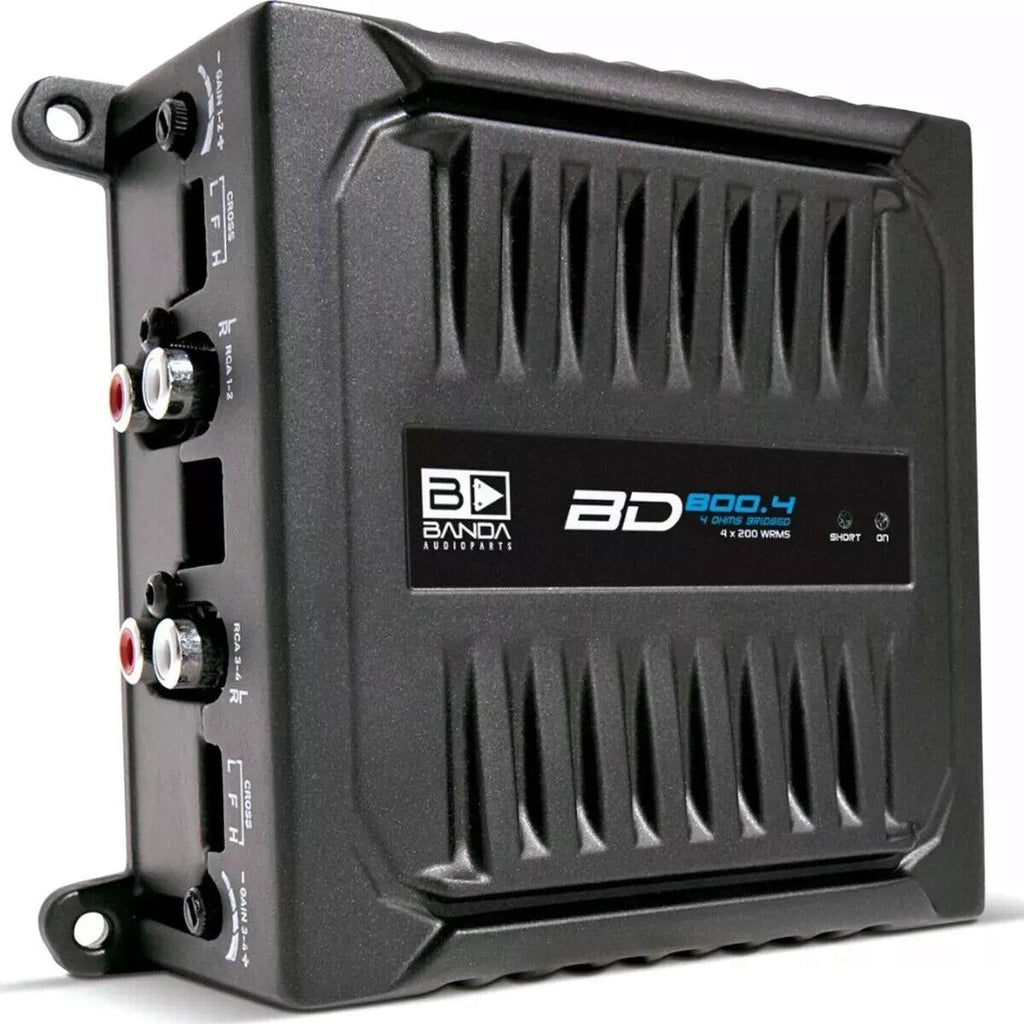

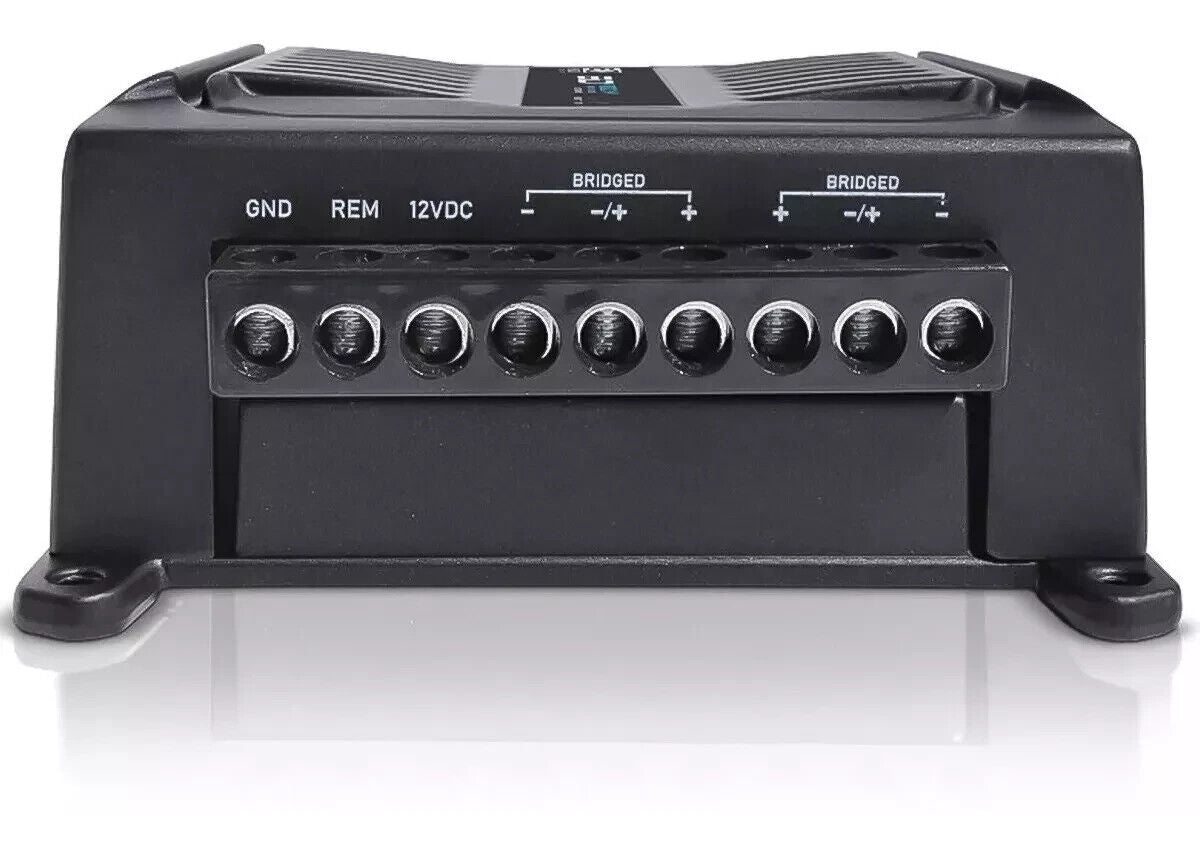

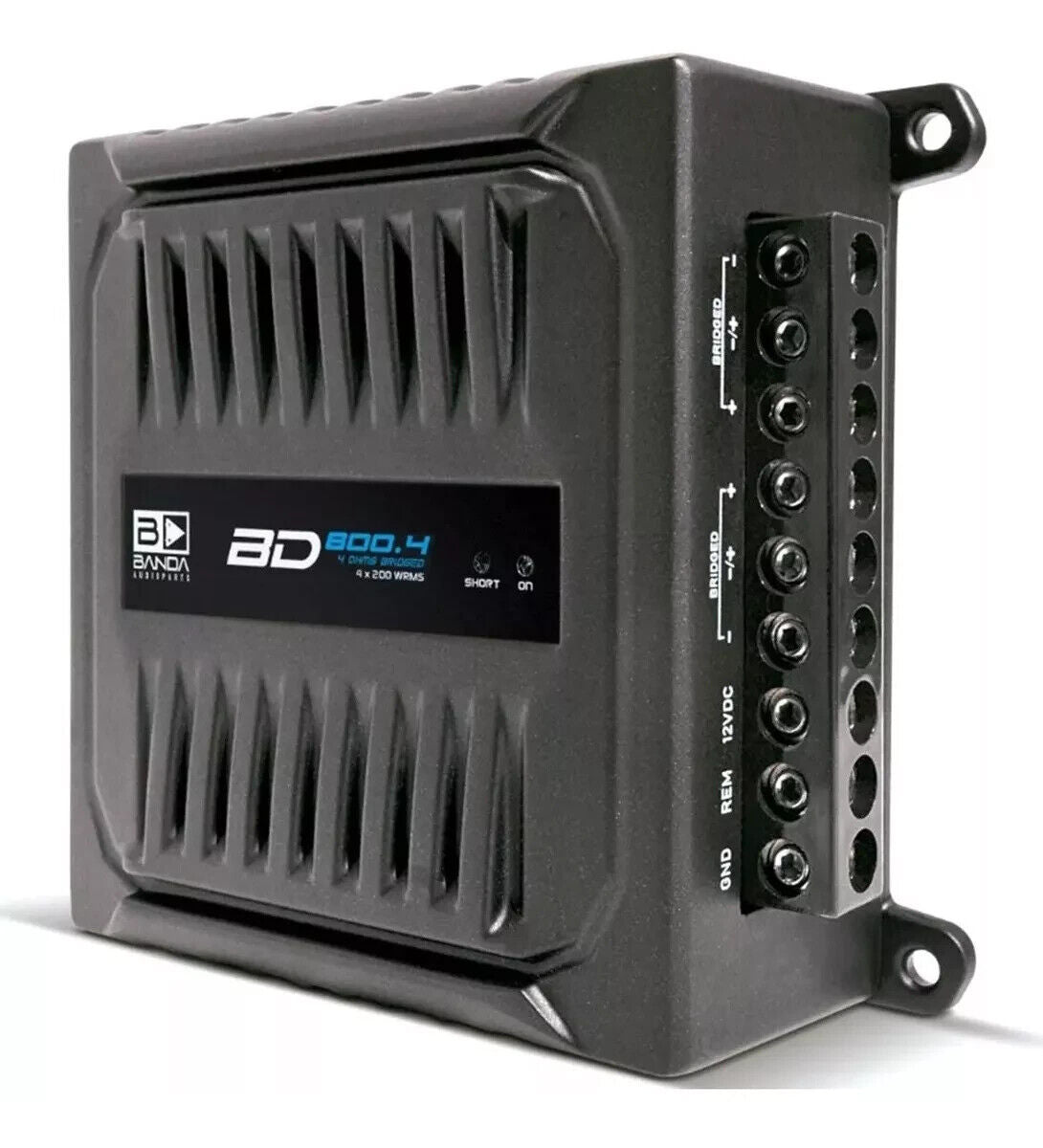

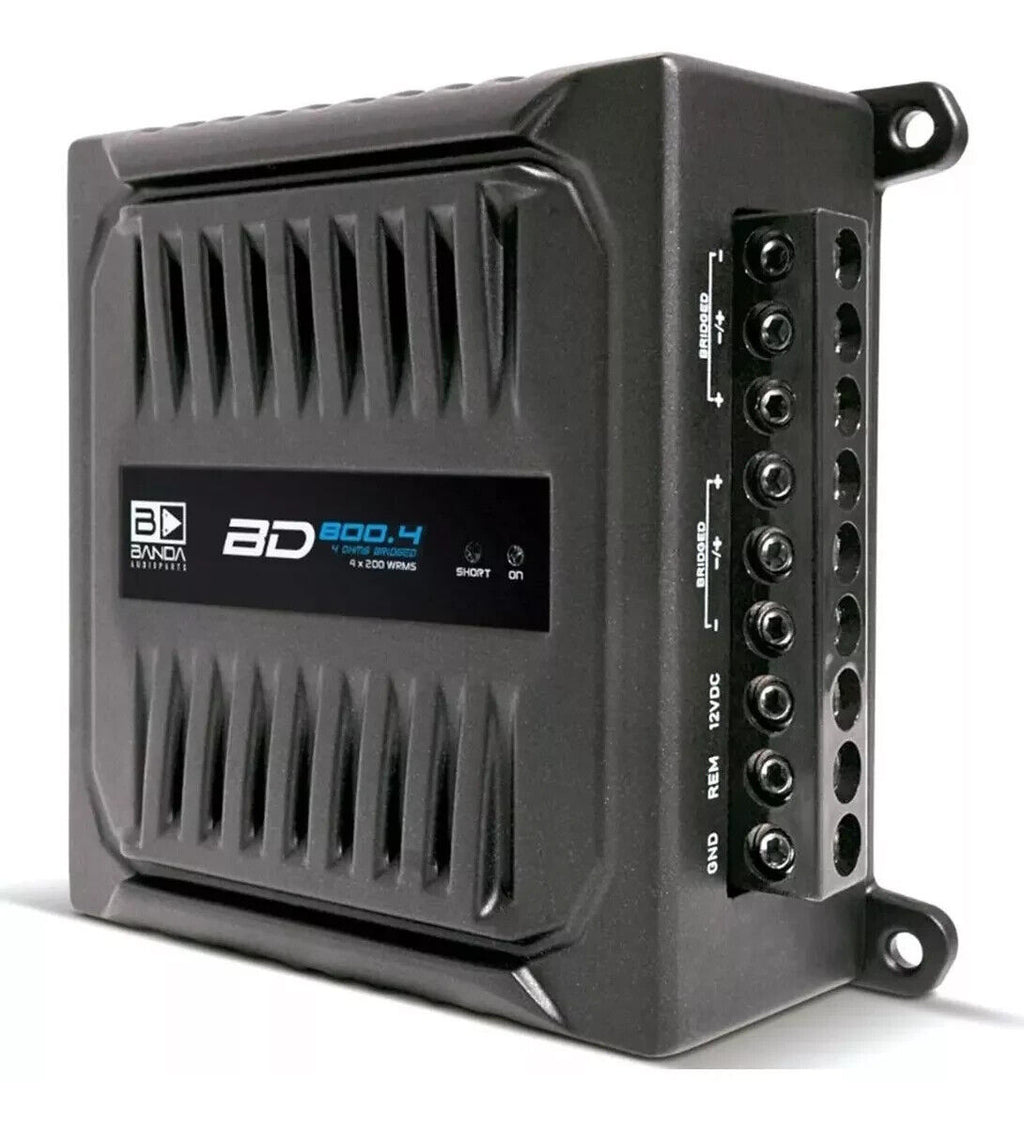

Amplificador Banda Audioparts BD800.4

Amplificador Banda BD800.4

Banda BD800.4 800 Rms 4 Stereo Channels New Amplifier Module

Technical specifications:
Model: 800.4 2 Ohms
Maximum Power 14.4 2 ohms - 4x250 wrms
Maximum Power 14.4 4 ohms - 4x160 wrms
Maximum Power 14.4 Bridged 4 Ohms - 2x500 wrms
Maximum Power 13.8 2 ohms - 4x200 wrms
Maximum Power 13.8 4 ohms - 4x130 wrms
Maximum Power 13.8 Bridged 4 Ohms - 2x400 wrms
Efficiency 4 Ohms 82%
Efficiency 2 Ohms 78%
Input voltage: 9-16V
Input Impedance: 47K Ohms
Input sensitivity: 180mV - 3.4V
Signal noise ratio: 85 dB
Frequency Response 20Hz to 20KHz
HPF: 90Hz to 20kHz
LPF: 20Hz to 90Hz
HxWxD: 11x12x5.5
Weight: 0.780


Package content:
• 1 Amplifier Module 800.4
• Manual
