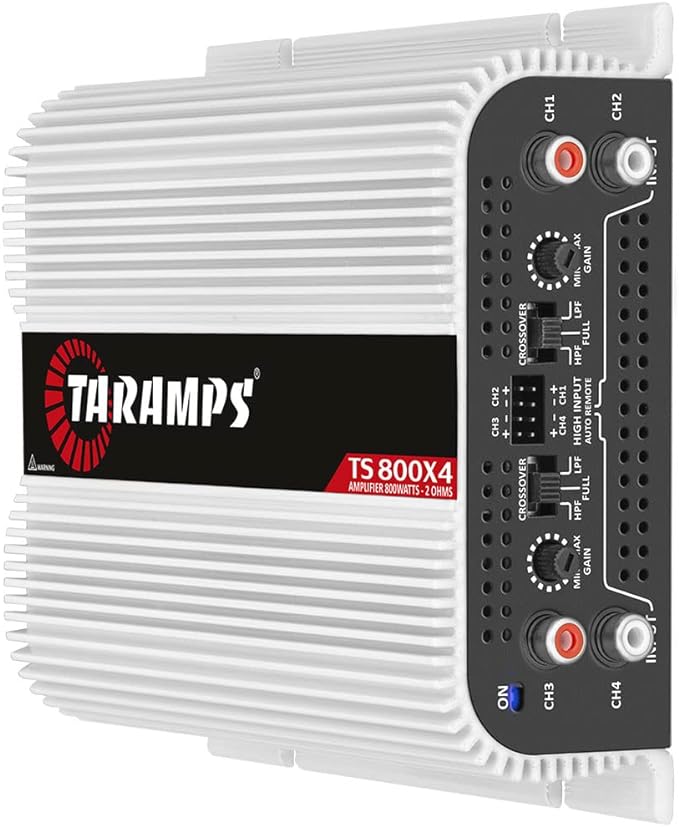

Amplificador Taramps TS800x4 2ohm
OPERATION CLASS |
D |
NUMBER OF CHANNELS |
04 |
MAXIMUM POWER |
@ 12,6 VDC - 2 OHMS: 800W RMS (4 x 200W RMS) @ 12,6 VDC - 4 OHMS: 544W RMS (4 x 136W RMS) |
INPUT SENSITIVITY |
250mV |
SIGNAL TO NOISE RATIO |
>88dB |
FREQUENCY RESPONSE |
10Hz to 36KHz (-3dB) |
CROSSOVER HIGH PASS (HPF) |
90Hz (-12dB/8ª) Fixed |
CROSSOVER LOW PASS (LPF) |
90Hz (-12dB/8ª) Fixed |
INPUT IMPEDANCE |
18K Ohms |
OUTPUT IMPEDANCE |
2 Ohms |
PROTECTION SYSTEM |
Output overload |
MIN. SUPPLY VOLTAGE |
9VDC |
MAXIMUM POWER SUPPLY VOLTAGE |
16VDC |
CONSUMPTION AT REST |
1.4A |
MAXIMUM MUSIC CONSUMPTION |
@12.6VDC: 43A |
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL |
86A |
DIMENSIONS (H X W X D) |
7.17" x 2.05" x 8.94" |
WEIGHT |
3.52lb |
