Equalizer Massive Audio EQ7X -

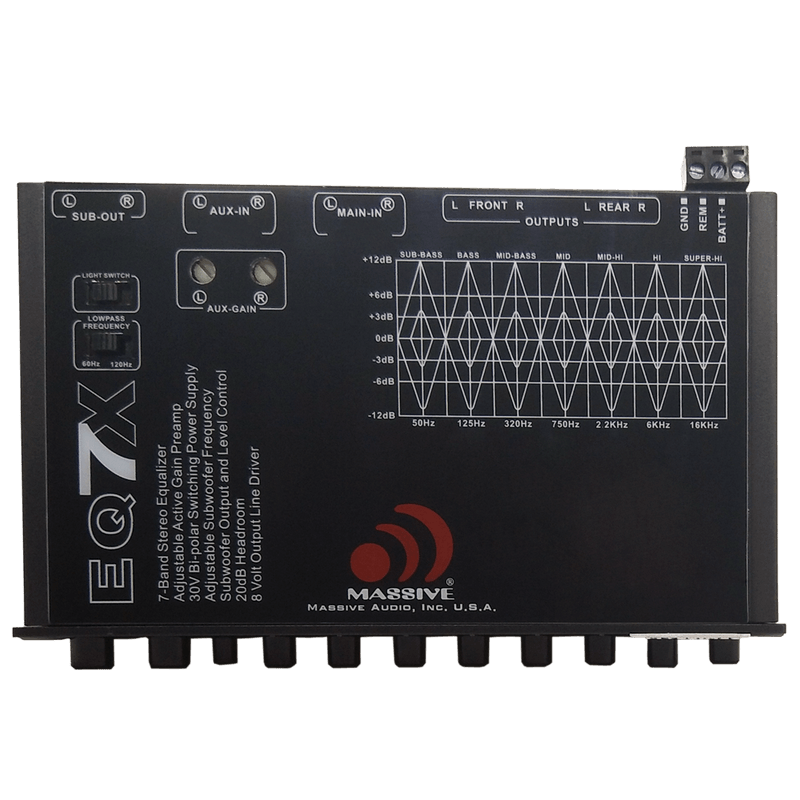

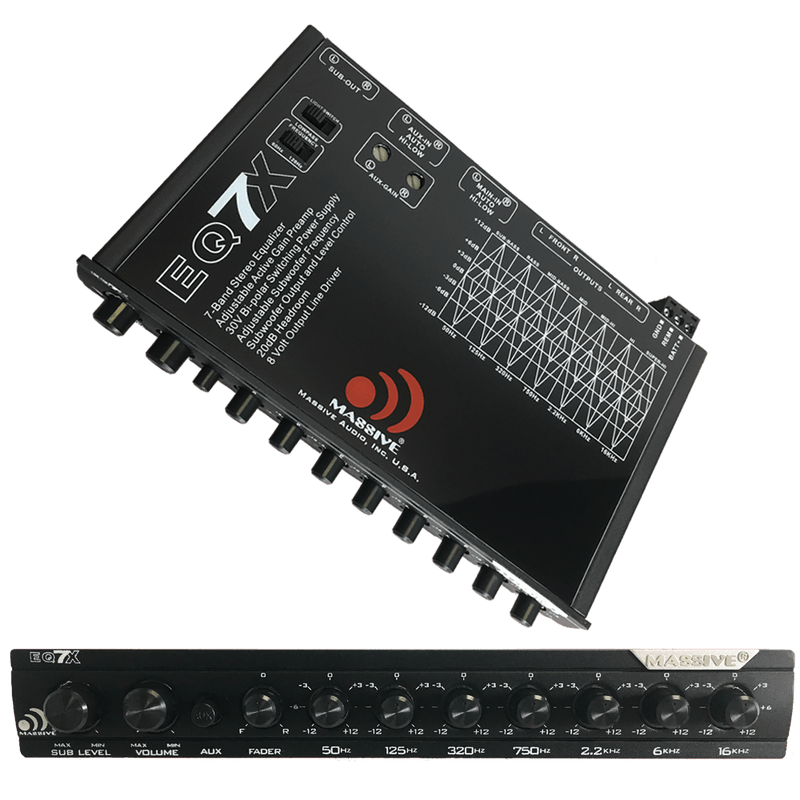

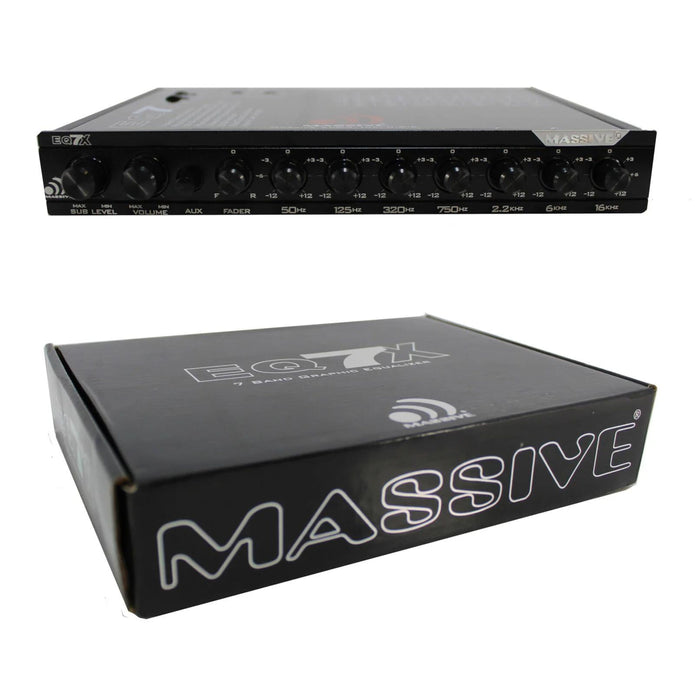

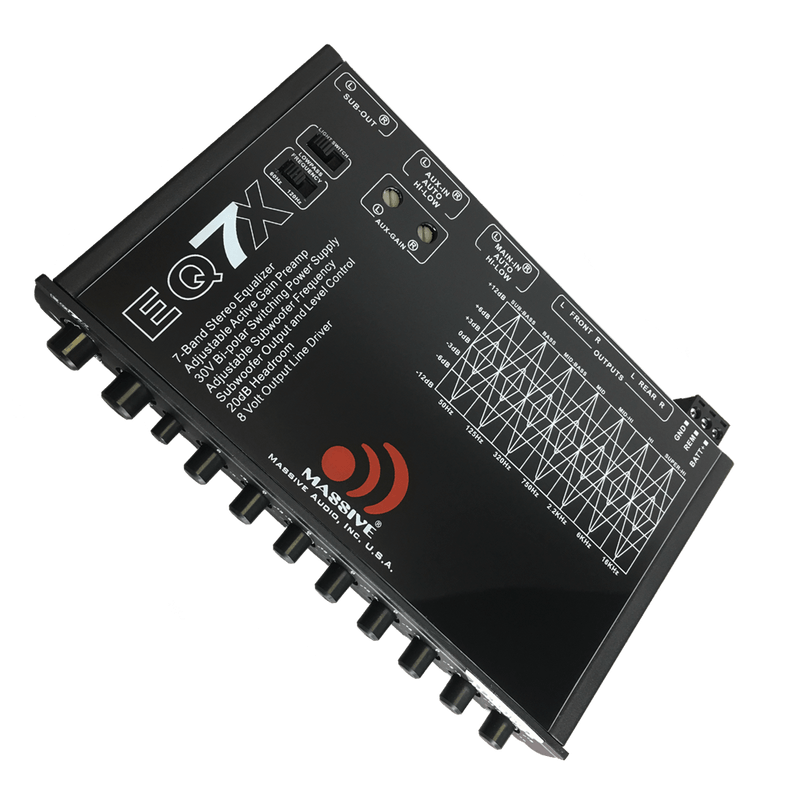

EQ7X - 7 Band Car Audio Graphic Equalizer 8 Volt
- 1/2 DIN
- 7 Band Graphic Equalizer
- Gold Plated RCA Connectors
- 50Hz, 125Hz, 320Hz, 750Hz, 2.2KHz, 6KHz, 16KHz
- Each Frequency Adjustable From -12dB to +12dB
- * -15dB to +15dB for Subwoofer Frequencies
- Subwoofer Output Built-In 18dB per Octave electronic X-Over fixed @ 60Hz or 120Hz
- 8 Volt Output Line Driver
- RCA Auxiliary Input (Rear) inputs for MP3, DVD or Phone
- 6-Channel / 7 Volt RCA Outputs (Front/Rear/Subwoofer)
- Separate Controls for Master, Sub, Volume (Sub level) Front / Rear, Fader, Main or AUX Inputs
- Extended Frequency Response from 20HZ ~ 30Hz / 100dB S/N
- Adjustable Master Volume Level Control
- Adjustable Active Gain Preamp
- 30V Bi-Polar Switching Power Supply
- 20dB Headroom
- Adjustable Subwoofer Level Control
- Input Impedance 20K Ohms
- Output Impendence 2K Ohms
- Stereo Separation 82dB / 1KHz
- Operating Voltage 11V - 15V Negative Ground
- ISO Mounting Holes / Removable Trim Ring
- Switchable LED from orange to soft blue to match interior lighting
- 2-Channel RCA Input with Adjustable Gain
- Dimensions: 7"(W) " 1"(H) " 4 1/8"(D)
