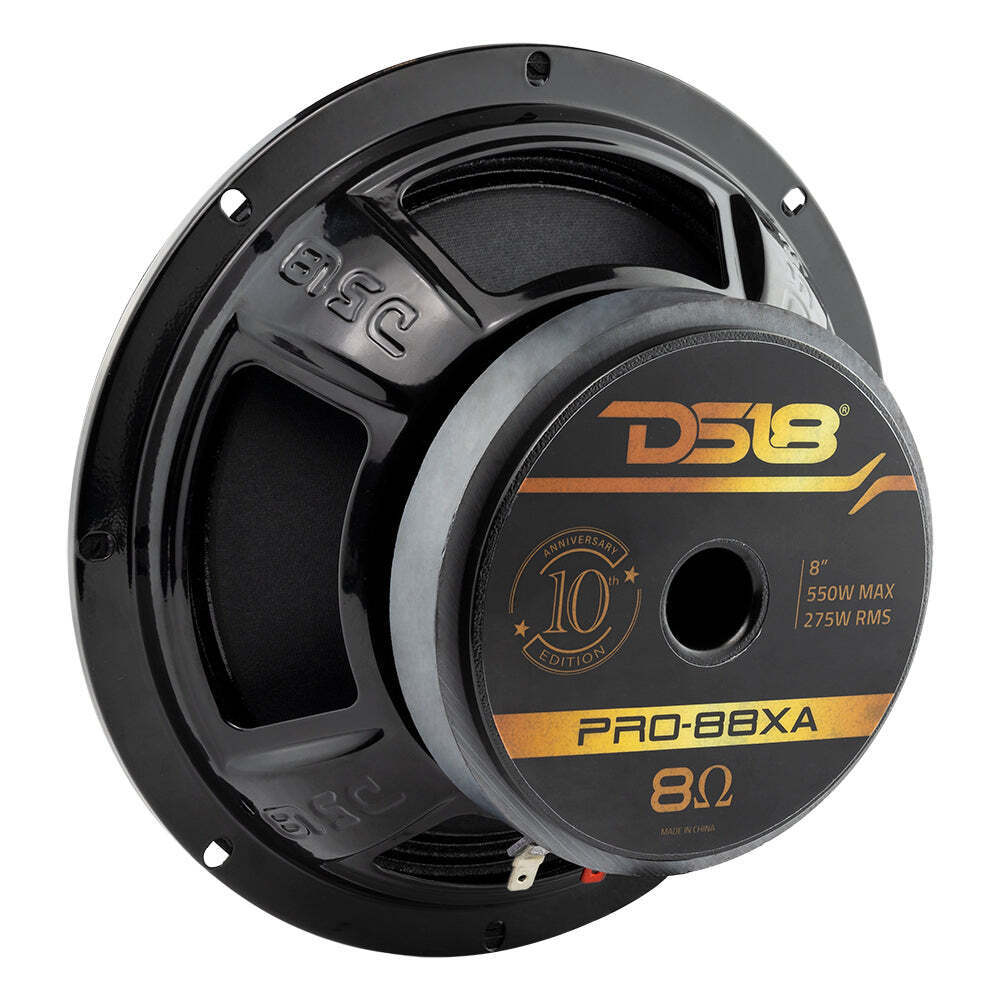

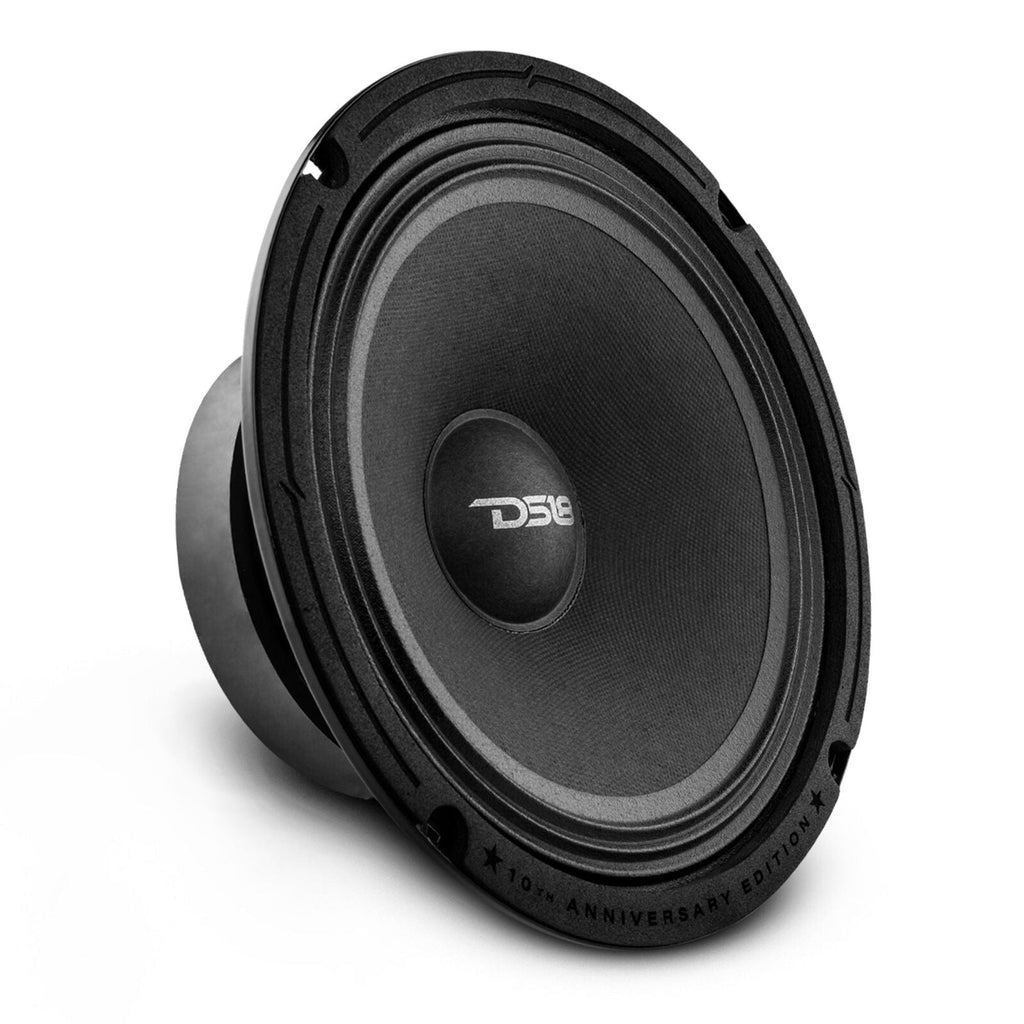

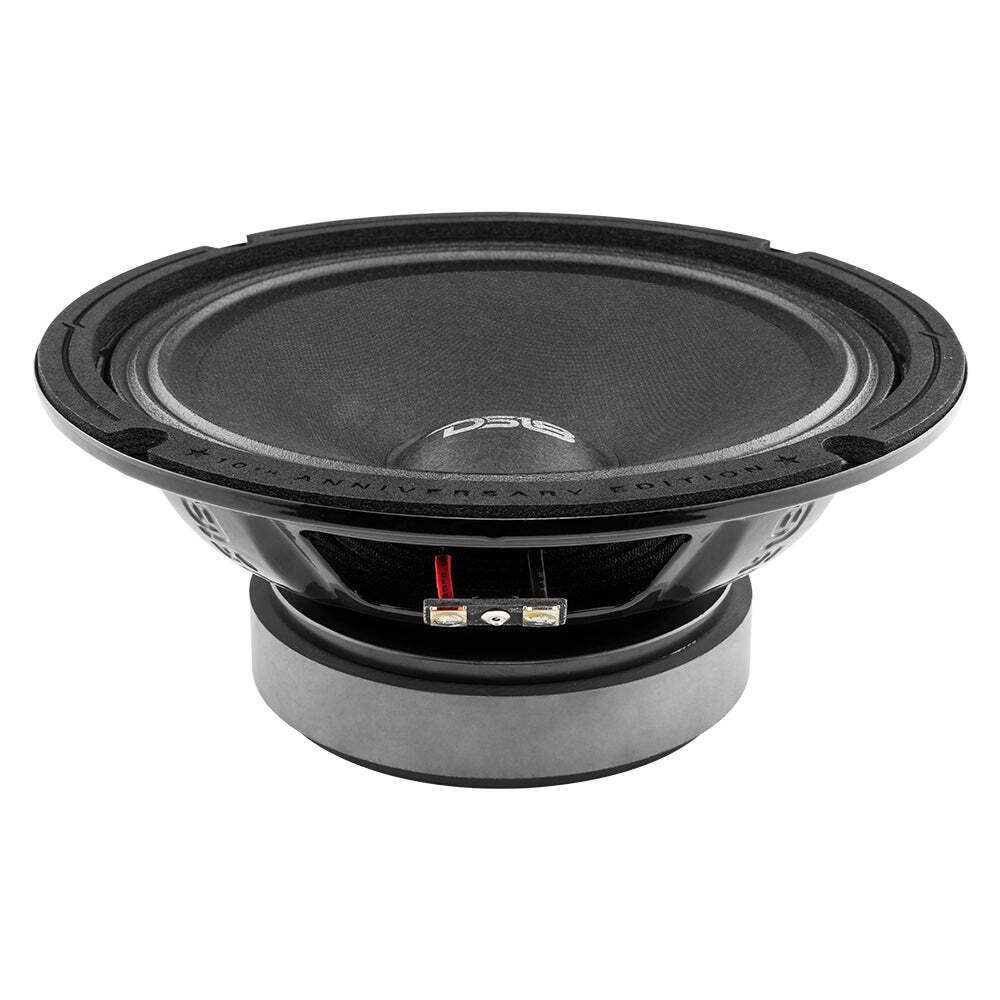

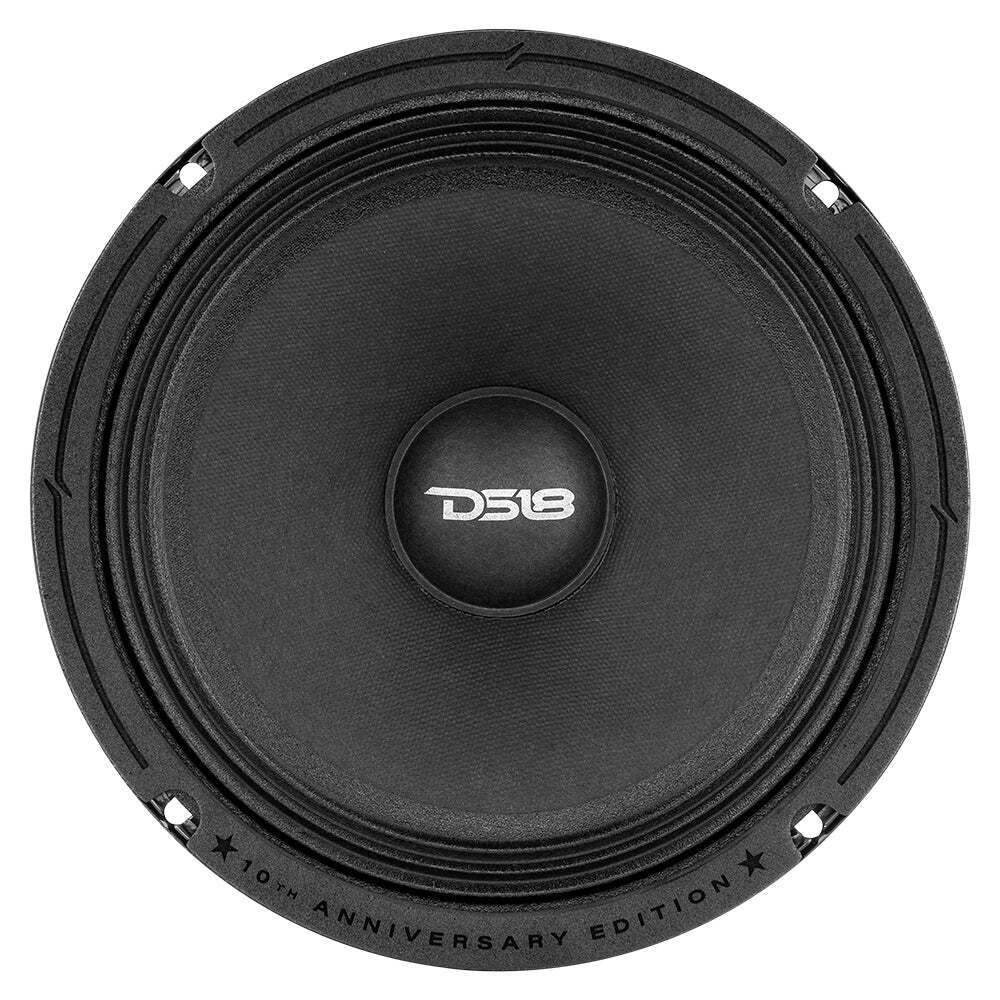

Bocina 8" Special Edition DS18 PRO-88XA 10 Anniversary
SPECIFICATIONS
Nominal Diameter 8" / 203mm
Nominal Impedance 8 Ohms
RMS Power Handling 275W
MAX Power Handling 550W
Sensitivity (1w/1m) 97.8dB
Frequency Response 60Hz-8KHz
Recommended HI Pass Crossover 80Hz
Sold As Pair or Single Single
Grill Included No
MOTOR
Voice Coil Diameter 1.5" / 38mm
Voice Coil Former Material Kapton
Winding Material CCAW
Cone Material Paper
Bullet Material Paper
Surround Material Cloth
Basket Material Steel
Basket Color/Finish Gloss Black
Magnet Material Ferrite
Magnet Weight 33oz
MEASUREMENT
Overall Diameter 8.25" / 209.8mm
Overall Depth 3.45" / 88mm
Front Mount Baffle Cutout 7.25" / 184mm
Mounting Depth 3.2" / 82mm
Motor Diameter 4.7" / 120mm
